AvailableOrigin: Vietnam

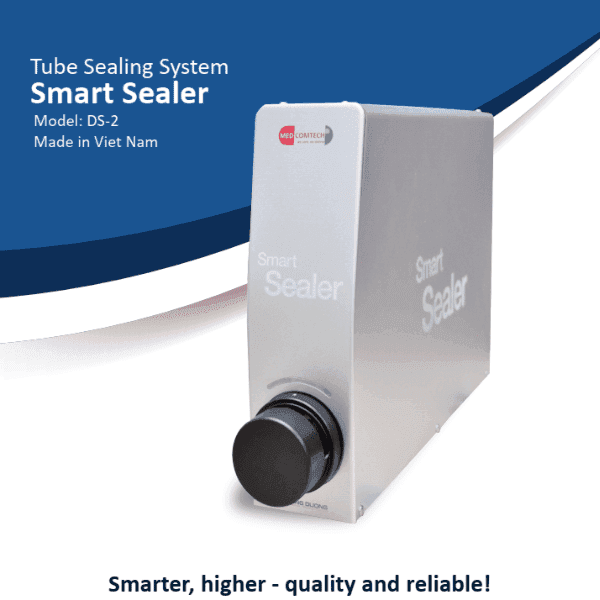

Smart Sealer DS-2 Blood Bag Tube Sealer
Product code: DS-2 | Brand: Đông Dương
Smart Sealer DS-2 Blood Bag Tube Sealer
- Smooth operation, quick and easy handling
- Produces high-quality welds within 0.5 to 3 seconds

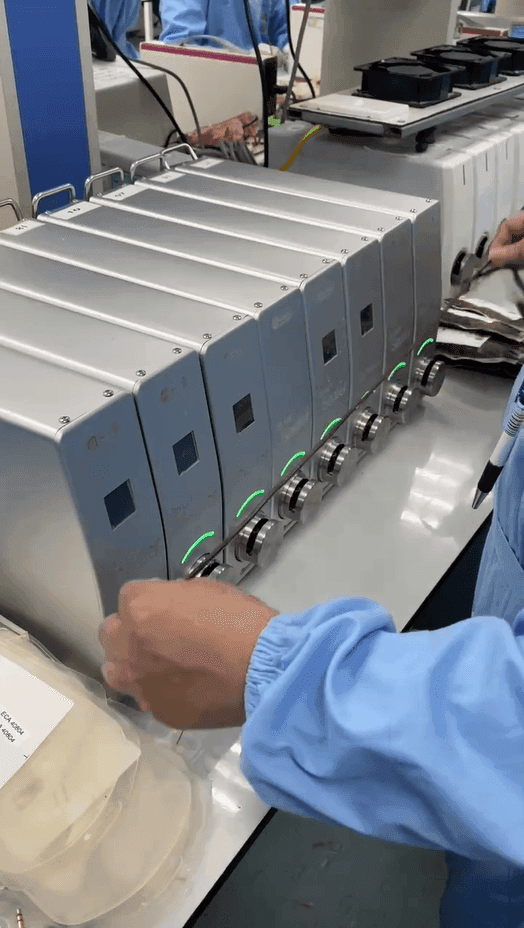

- Connects up to 8 devices simultaneously for tube preparation
- LED lights indicate operational status and error warnings
- Optical sensors automatically detect tubes
- Focused energy helps prevent hemolysis
- Supports software for testing and configuration setup
Product Description
Technical Specifications
- Tube Type: PVC tube with an outer diameter up to 6.0 mm
- Welding Time: From 0.5 to 3 seconds depending on the tube type
- Dimensions (Width x Height x Length): 70 x 230 x 360 mm
- Weight: 4.5 kg
- Voltage: 100 – 240V
- Frequency: 50 – 60Hz
- Standby Power: < 24W
- Welding Power: < 200W
- High Frequency Output Power (RF): Maximum 100W, 50 Ω, 40.68MHz ± 1kHz

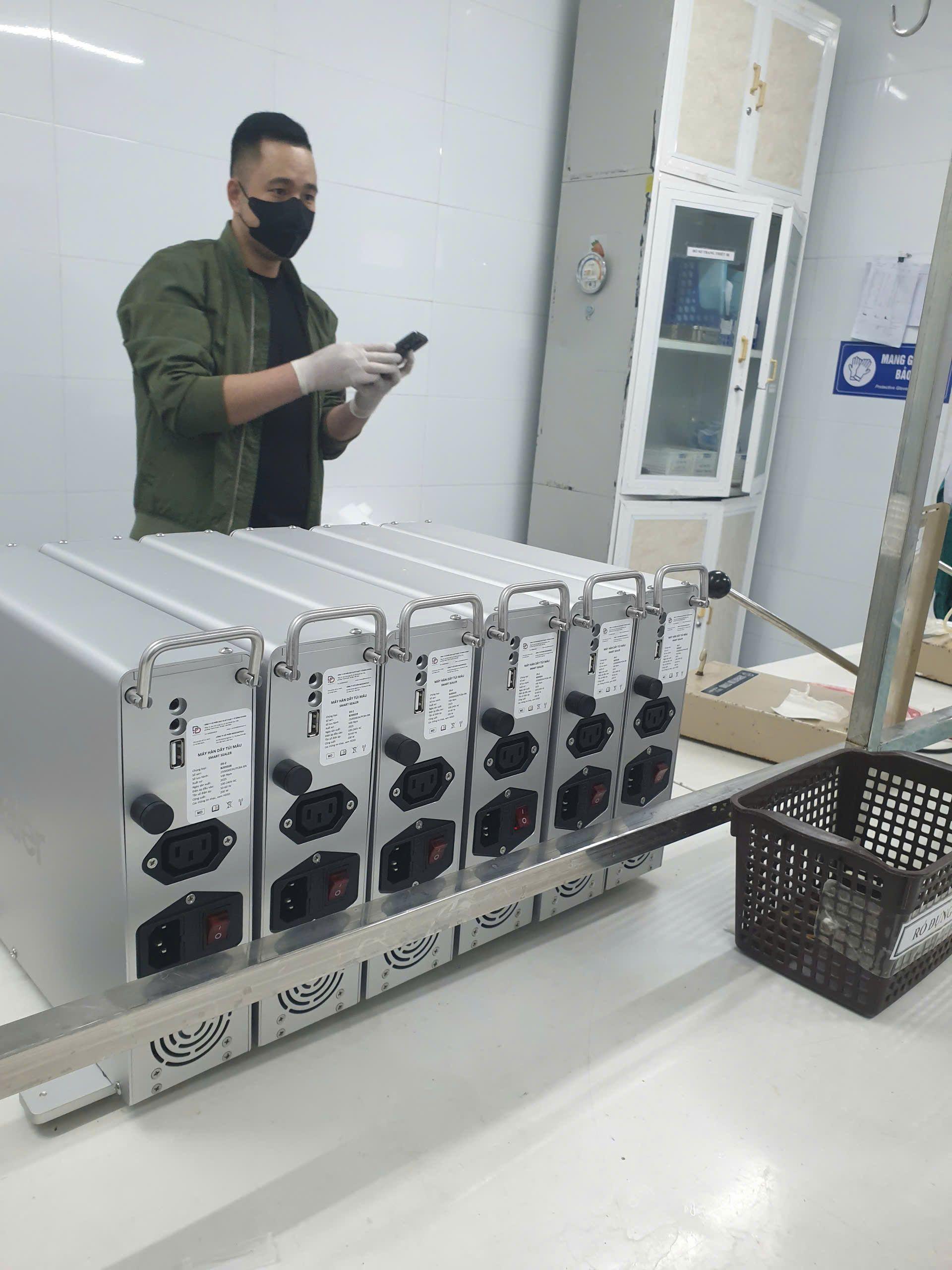

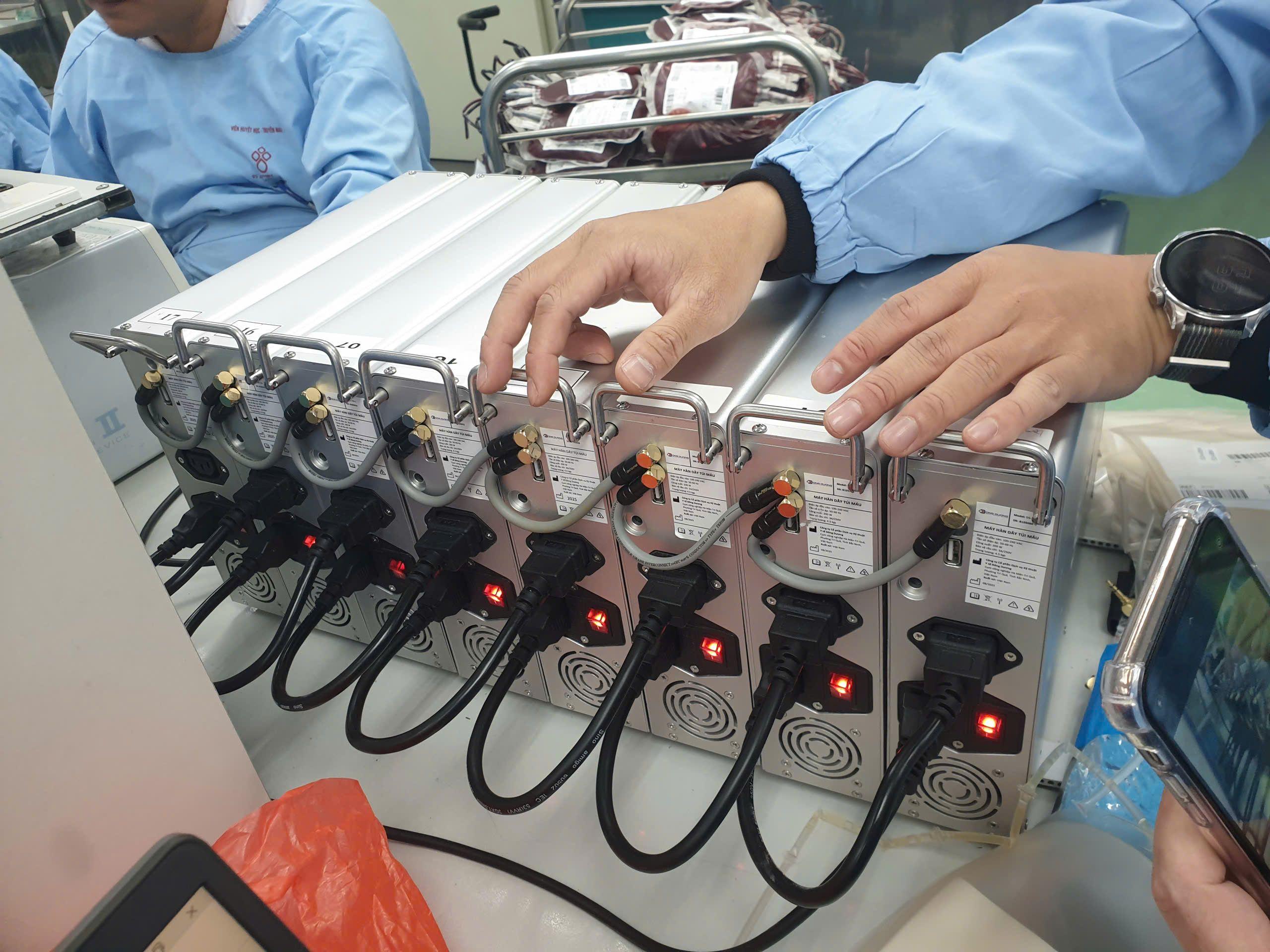

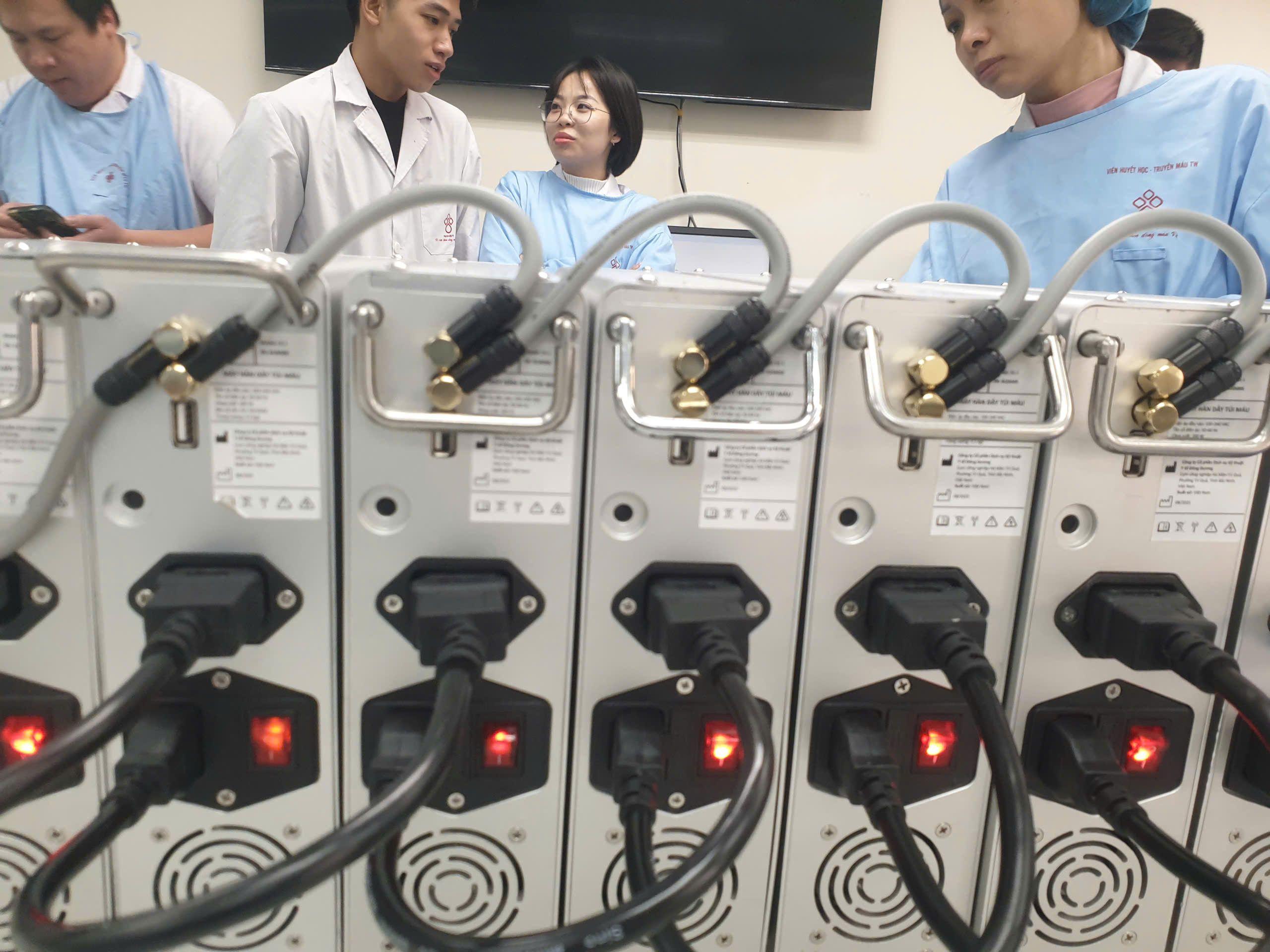

- Connection Ports: Port In & Port Out for cascade operation
- Operating Temperature: 10°C to 40°C
- Storage Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% Rh (non-condensing)
